>32 jaar ingenieurservaring.

Het beste is maar goed genoeg.


Actuatoren voor rook- en warmteafvoer (RWA)log oxygen

conform NBN S 21-208-1 & -3 of EN 12101.2
spindel motor 4verticaal rookluik 3spindel 2

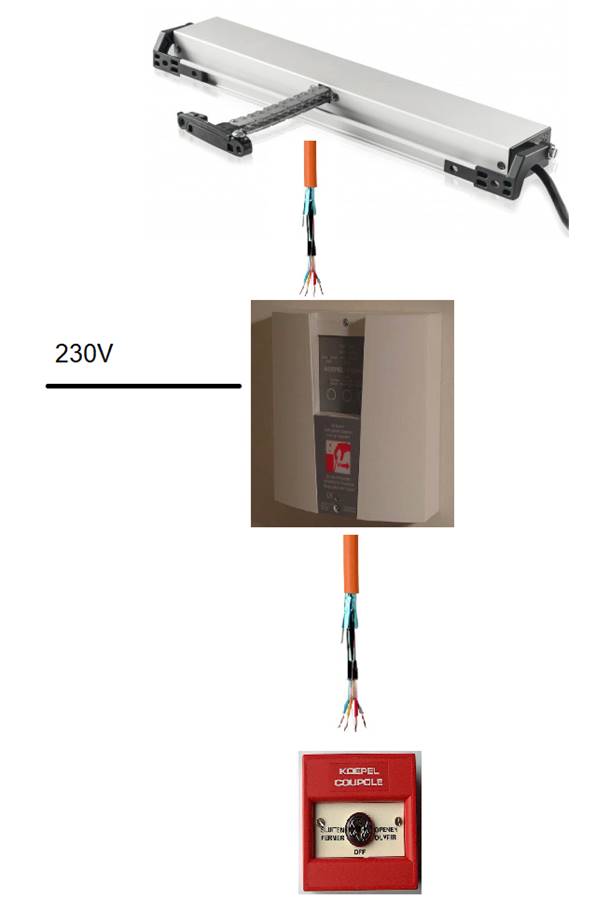

opstelling

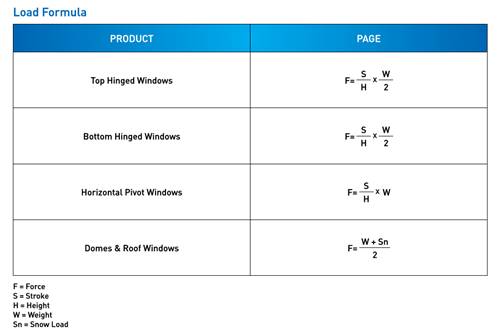

Dimensionering

dimensionering

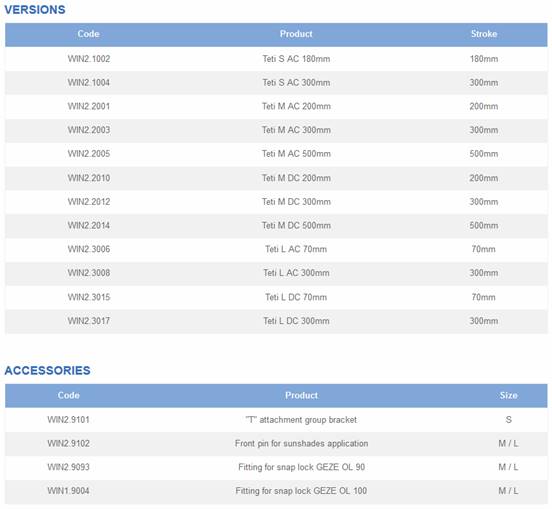

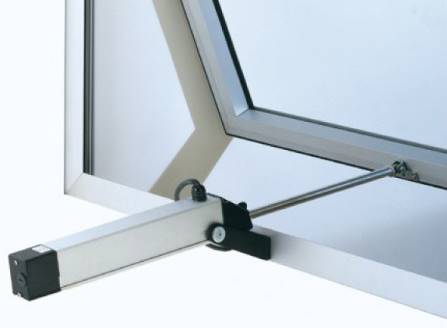

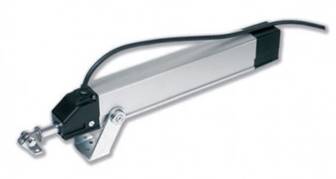

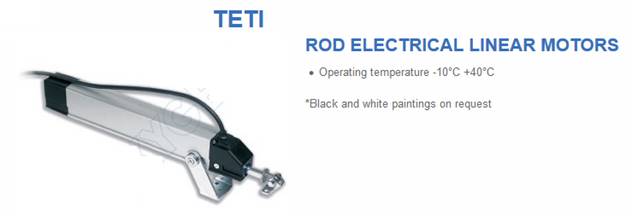

Spindelmotoren 24V DC

spindelmotor1spindelmotor 2
spindelmotor 5spindelmotor 6
spindelmotor 7

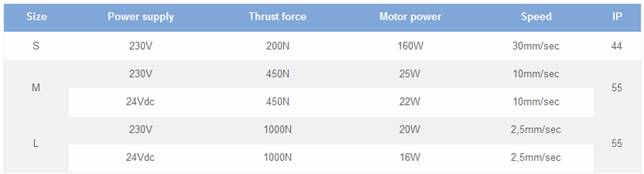

M         WIN 2 2010 200 mm                                                                                                         -
M         WIN 2 2012 300 mm                                                                                                         €,-
M         WIN 2 2014 500 mm                                                                                                         €-
L          WIN 2 3015  70 mm                                                                                                          €,-
L          WIN 2 3017 300 mm                                                                                                         €-

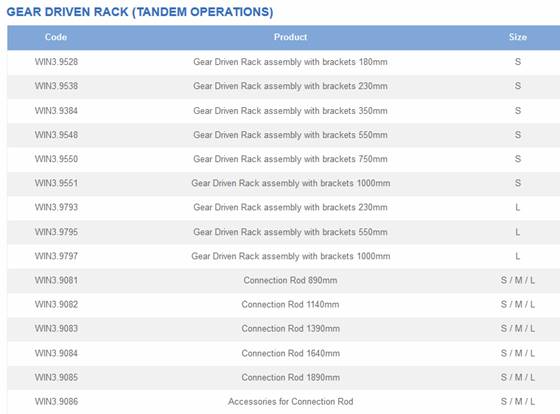

spindelmotor 8spindelmotor 9

spindelmotor 11Spiundelmotor 12

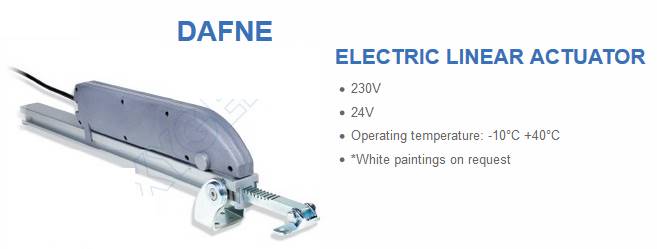

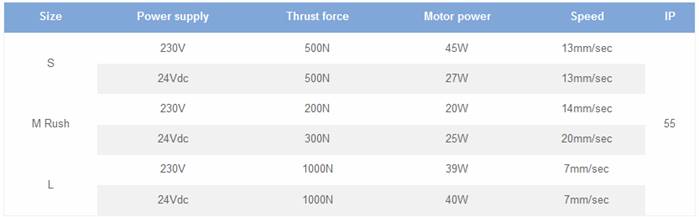

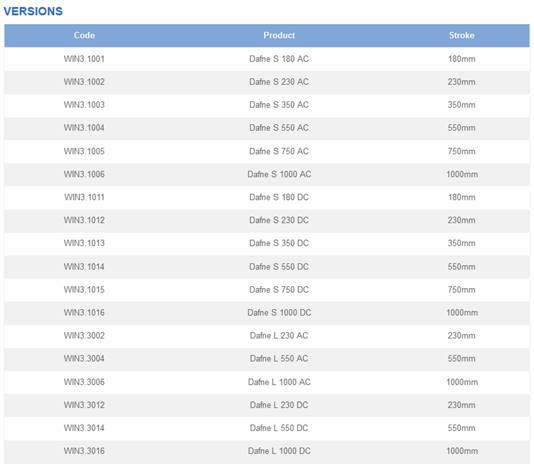

S         WIN3 1011               Dafne S 180 DC                                                     €-
S         WIN3 1012               Dafne S 230 DC                                                     €
S         WIN3 1013               Dafne S 350 DC                                                     €
S         WIN3 1014               Dafne S 550 DC                                                     €
S         WIN3 1015               Dafne S 750 DC                                                     €
S         WIN3 1016               Dafne S 1000 DC                                                  €
L          WIN3 3012               Dafne L 230 DC                                                    €
L          WIN3 3014               Dafne L 550 DC                                                    €
L          WIN3 3016               Dafne L 1000 DC                                                  €

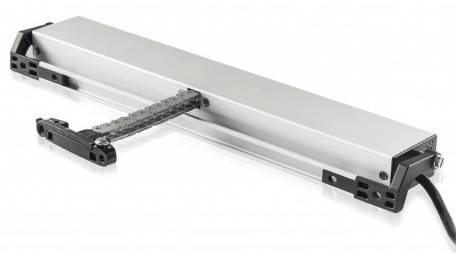

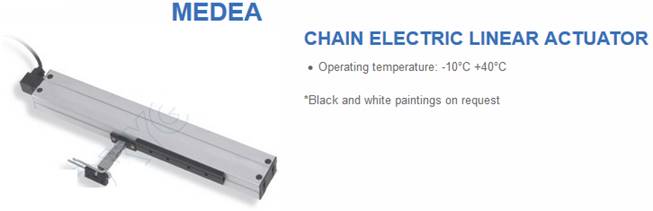

Kettingmotoren 24V DC

kettingmotor 1kettingmotor 2kettingmotor 4
kettingmotor 5

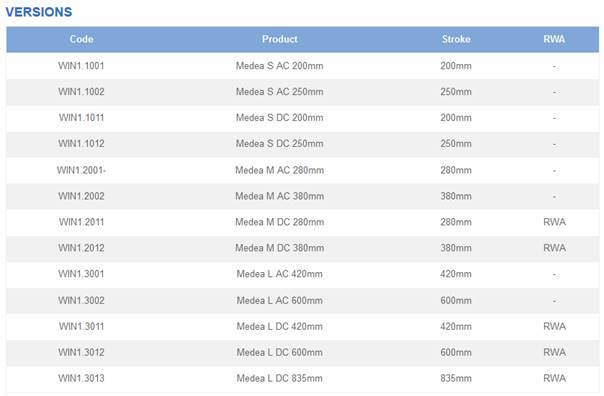

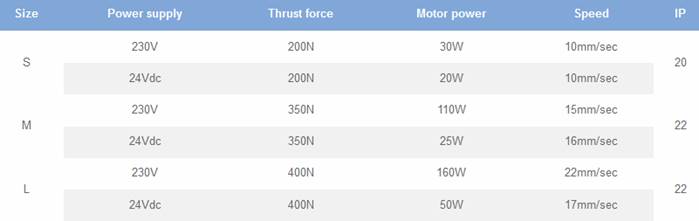

S         WIN1 1011 200 mm            200N                                                             €
S         WIN1 1011 250 mm            200N                                                             €
M         WIN1 2011 280 mm            350N                                                            €
M         WIN1 2012 380 mm            350N                                                            €
L          WIN1.3011 420 mm            400N                                                            €
L          WIN1 3012 600 mm            400N                                                            €
L          WIN1 3013 835 mm            400N                                                            €

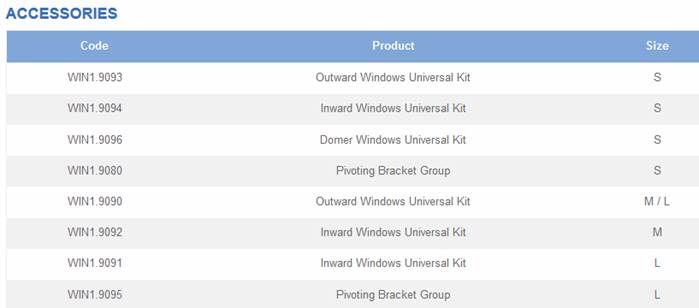

Inward window universal kit                                                                                  €
Outward window universal kit                                                                               € -



kettingmotor 1
kettingmotor 2kettingmotor 3

Oxygen Cataloog 2016
